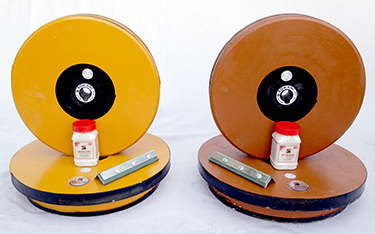

Horizontal Type Mill Sone

The very heart-n-soul of Somani Industries, the patented design emery stone is the product that makes us proud of our existence, establishing us as a World-Class brand in milling machinery technology.

Believing in the formula of 3 M –Maximum output, Maximum running life and Minimum Human Efforts we manufacture emery stone using best in class raw material combined with modern technology supported with state of art infrastructure.

Our specialized design reduces the human effort of setting the stone while fitting. Our Stones are known for their hardness, easy installation and lasting performance.

We offer a wide range of mill stones both in synthetic emery and natural emery as per the requirement. These are available in various sizes and diameters as per the application specific requirements.

Speciality

Horizontal Janta Type

Models and Specifications
Stones Size 300mm (12’’) 350mm (14'') 400mm (16’’) 450mm (18'')
Thickness 130mm 130mm 160mm 160mm
No.of Steps 6 6 8 9
Bore 25mm Tapperd 25mm Tapperd 25mm Tapperd 25mm Tapperd
Weight of Pair 25 to 35 kgs. 30 to 37 kgs. 42 to 50 kgs. 52 to 65 kgs.

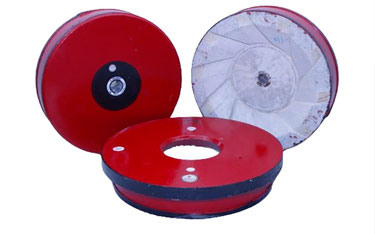

Horizontal Bolt Type

Models and Specifications
Stones Size 350mm (14'') 400mm (16'') 450mm (18'') 500mm (20'') 600mm (24'')
Thickness 160mm 225mm 225mm 225mm 225mm
No.of Steps 8 8 8 9 12
Bore 25mm Tapperd 37mm Tapperd 37mm Tapperd 37mm Tapperd 37mm Tapperd
Weight of Pair 32 to 40 Kgs 55 to 70 Kgs 80 to 100 Kgs 90 to 110 Kgs 130 to 160 Kgs
